Shop / Vacuum pumps and systems / PRP-LR2-400-460
Specifications
| SKU | PRP-LR2-400-460 |
| Technology | Two-stage liquid ring vacuum pump |
| Motor | 25 hp |
| Flow | 235 cfm |
| Rating | Ultimate 33 mbar abs (25 torr) with 15 C seal water |
| Lubrication | Water sealed |
| Voltages | 460 V 3 ph, 575 V 3 ph |
| Price basis | CAD, before tax, FOB Mississauga. Freight, installation and start-up quoted to your site. |
235 acfm (400 m³/h), 25 hp (18.5 kW), two stage, water sealed. Sized for transformer drying ovens and oil processing plants.
- Ultimate pressure to 33 mbar abs (25 torr) with 15 °C seal water
- Holds capacity at deep vacuum better than single stage
- Base mounted with motor and coupling guard
Price in Canadian dollars, before tax, FOB Mississauga. Freight, rigging, piping, electrical connection and start-up are quoted to the site. Electrical approval for Canada (CSA, cUL or ESA field evaluation) is confirmed on the quote. Not sure of the size? Send your vessel volume, target pressure and cycle time and we will size the package.
PRP-LR2-400-460

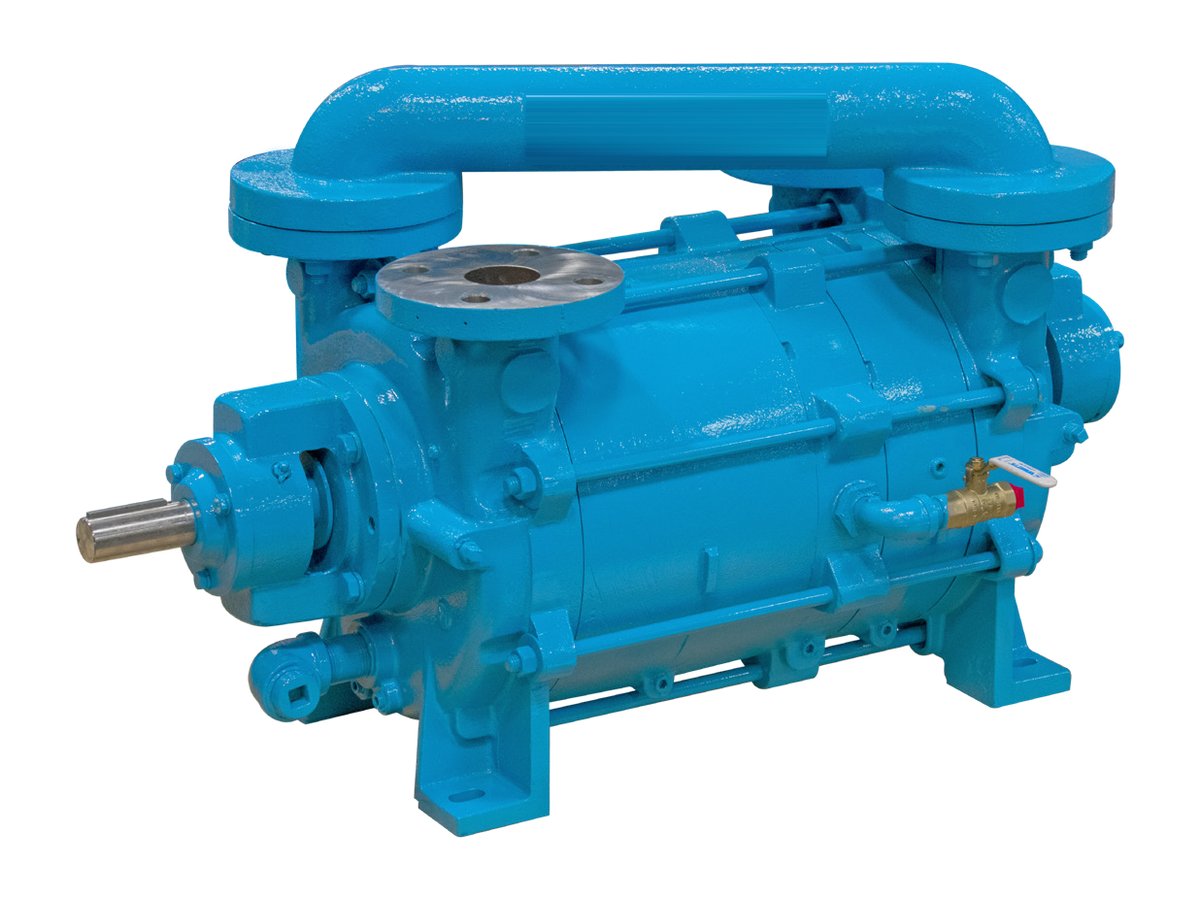

Two-stage liquid ring vacuum pump, 235 acfm, 25 hp (PRP-LR2-400)
$21,500.00 CAD, before tax
Get a formal quote for your purchasing team, or order on a purchase order with an approved company account.
Request a formal quote- Freight, rigging, electrical connection and start-up are quoted to your site. Installation through licensed service partners. Pickup in Ontario available.
- Company accounts get saved addresses, order history and payment terms on approval.
- Help with an order? support@prpreps.ca
- Not sure of the size? Use the vacuum selector or send us your duty and we will size it.
