Machine safety and press brake guarding.
Safety light curtains, press brake guarding, press controls, safety valves, palm buttons, safety mats and die blocks, made in Canada and supplied to plants across the country.

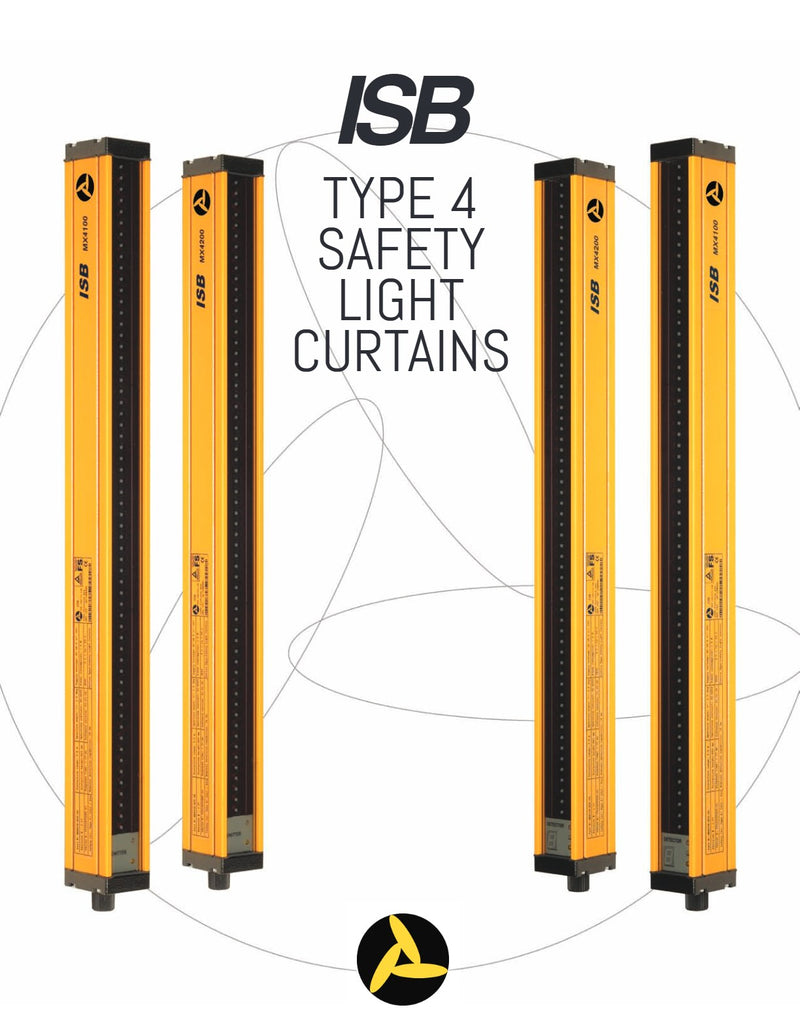

Safety light curtains
ISB MX Type 4 safety light curtains, made in Montreal, for press brakes, power presses, robot cells and machine openings. Choose the detection capability for what you need to protect, then the protective field height that covers the opening.
| Detection capability | Typically protects | Protective field heights |
|---|---|---|
| 14 mm | Fingers, close to the hazard | 300 to 1200 mm in 150 mm steps |
| 22 mm | Hands | 300 to 1800 mm in 150 mm steps |
| 30 mm | Hands | 300 to 1800 mm in 150 mm steps |
| 38 mm | Hands at a greater safety distance | 300 to 1800 mm in 150 mm steps |
| 82 mm | Body and access openings | 300 to 1800 mm in 150 mm steps |

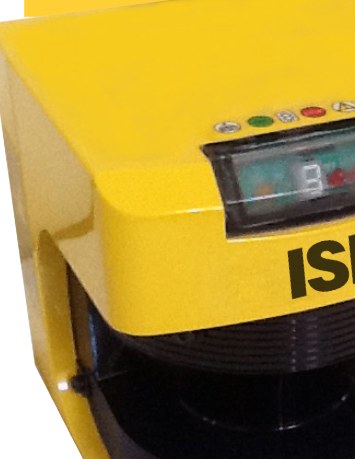

For large openings, robot cells and CNC tables, the SLS-400 area scanner sets up programmable warning and stop zones. Each light curtain set is an emitter and a detector. Two detector versions are available: a standalone version for general machine guarding, and a version that works with the press brake guarding system below. The right resolution and mounting distance depend on the machine's stopping time, so we confirm it with you before you order.
MX4100 light curtain sets, list price in Canadian dollars

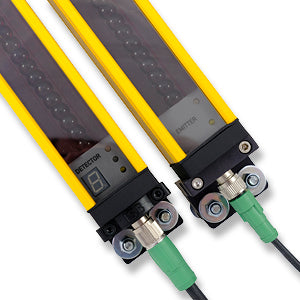

Emitter and detector pair for general machine guarding. Columns are detection capability, rows are protective field height. Tap a price to save that set to your quote list, then send the list for a formal quote with freight and lead time.
Swipe the table sideways to see all detection capabilities.
| Field height | Detection capability, CAD list price per set | ||||
|---|---|---|---|---|---|
| 14 mm | 22 mm | 30 mm | 38 mm | 82 mm | |
| 300 mm | |||||
| 450 mm | |||||
| 600 mm | |||||
| 750 mm | |||||
| 900 mm | |||||
| 1050 mm | |||||
| 1200 mm | |||||
| 1350 mm | n/a | ||||
| 1500 mm | n/a | ||||
| 1650 mm | n/a | ||||
| 1800 mm | n/a | ||||
MX4200 light curtain sets, for use with the press brake guarding system
Same emitters, with the MX4200 detector that works with the Merlin 4000 press brake controls.
Swipe the table sideways to see all detection capabilities.
| Field height | Detection capability, CAD list price per set | ||||
|---|---|---|---|---|---|
| 14 mm | 22 mm | 30 mm | 38 mm | 82 mm | |
| 300 mm | |||||
| 450 mm | |||||
| 600 mm | |||||
| 750 mm | |||||
| 900 mm | |||||
| 1050 mm | |||||
| 1200 mm | |||||
| 1350 mm | n/a | ||||
| 1500 mm | n/a | ||||
| 1650 mm | n/a | ||||
| 1800 mm | n/a | ||||
Each set is one emitter and one detector. Cables, brackets, mirrors and the safety relay or wiring box are listed under accessories and sold separately. Ships from Montreal, usually within two weeks, with freight quoted to your site. List prices in Canadian dollars, before tax. Know your detection capability and safety distance? Buy the set online. Not sure? Tap the prices you are considering and send the list, with the machine and its stopping time, and we will configure it.
Merlin press brake guarding

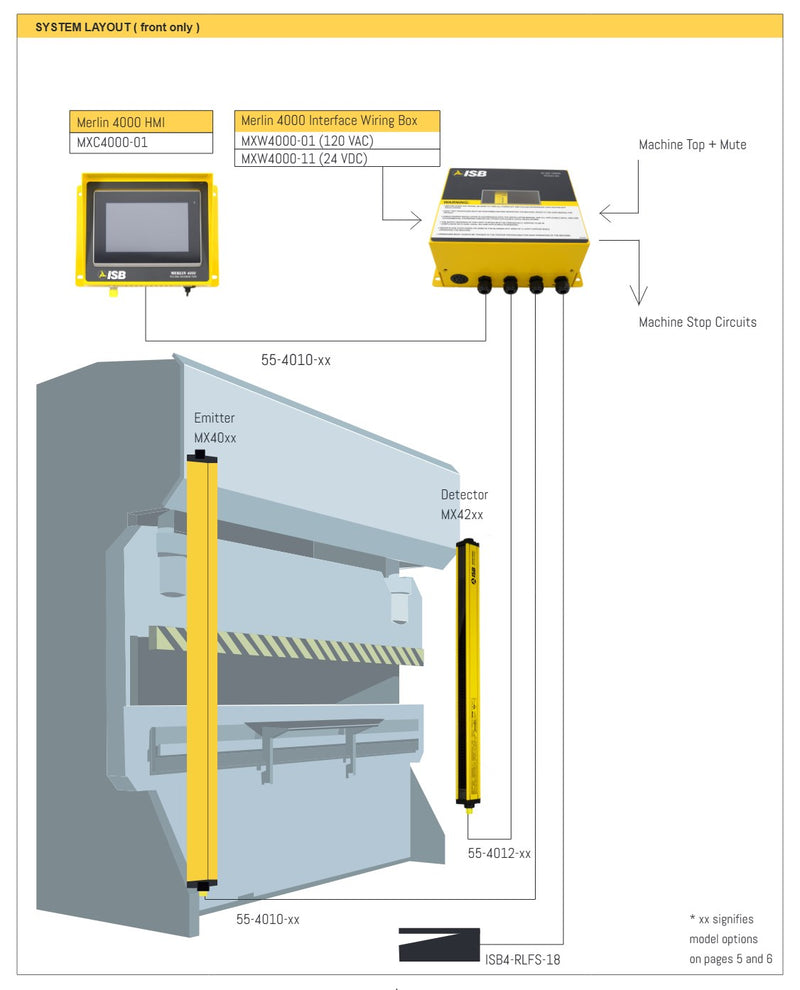

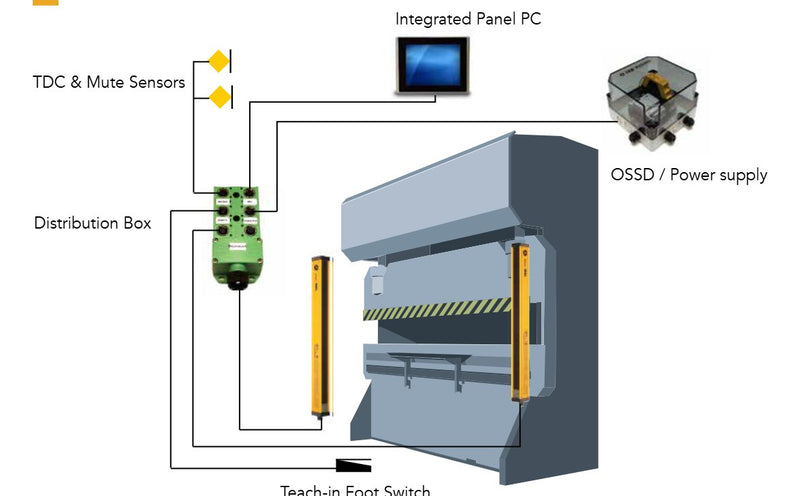

The Merlin 4000, a complete guarding package for hydraulic and mechanical press brakes: light curtains, an operator screen, and an interface that ties into the machine's controls.

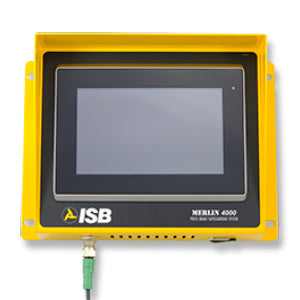

Operator screen
Operator screen for setting up and running the guarding system, with a remote learn foot switch.

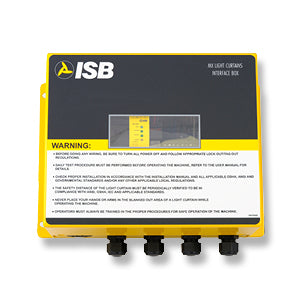

Interface wiring boxes
Prewired boxes for 120/240 V AC or 24 V DC, for one to four sets of light curtains, with safety relays and terminal blocks.
Front, rear and side protection
Add a second light curtain below or behind the brake, or a safety mat at the rear.
Press brake interface kits
Interface kits for common hydraulic and mechanical press brake makes and models. Tell us your machine and we will match the kit.

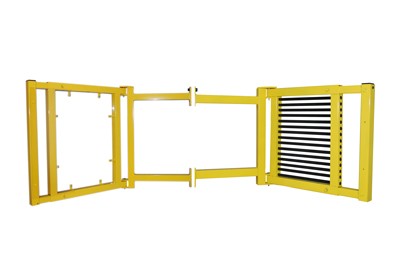

Swing-away side guards
Polycarbonate or horizontal bar guards, 450 to 1200 mm, made to your dimensions.
Mounting brackets
Straight side brackets for vertical and horizontal light curtain sets, cut to length.
| Part | Description | List, CAD | |
|---|---|---|---|
| MXC4000-01 | Merlin 4000 operator screen (HMI) | $7,235 | |
| ISB4-RLFS-18 | Remote learn foot switch, 18 ft cable | $260 | |
| MXW4000-01 | Wiring box, 120/240 V AC, one light curtain set, Merlin 4000 | $2,760 | |
| MXW4000-11 | Wiring box, 24 V DC, one light curtain set, Merlin 4000 | $2,590 | |
| MXW4000-02 | Wiring box, 120/240 V AC, front plus one extra curtain below or behind | $3,365 | |
| MXW4000-12 | Wiring box, 24 V DC, front plus one extra curtain below or behind | $3,105 | |
| MXW4000-03 | Wiring box, 120 V AC, front curtain plus rear Fab-Mat | $3,880 | |
| MXW4001-01 | Wiring box, 120/240 V AC, one MX4100/4200 set, junction block wiring | $2,760 | |
| MXW4001-11 | Wiring box, 24 V DC, one MX4100/4200 set, junction block wiring | $2,590 | |
| MXW4001-02 | Wiring box, 120/240 V AC, two sets | $3,365 | |
| MXW4001-12 | Wiring box, 24 V DC, two sets | $3,105 | |
| MXW4001-03 | Wiring box, 120/240 V AC, three sets | $3,880 | |
| MXW4001-13 | Wiring box, 24 V DC, three sets | $3,710 | |
| MXW4001-04 | Wiring box, 120/240 V AC, four sets | $4,400 | |
| MXW4001-14 | Wiring box, 24 V DC, four sets | $3,965 | |
| MXW4003-01 | Wiring box, 120/240 V AC, one set, dedicated terminal blocks and teach port | $2,760 | |
| MXW4003-11 | Wiring box, 24 V DC, one set, dedicated terminal blocks and teach port | $2,590 | |
| MXP4000-01 | Merlin 4000 interface board, one MX4200 system | $1,370 | |
| MXP4000-02 | Merlin 4000 interface board, one MX4200 plus one MX4100 system | $1,715 | |
| MXP4003-01 | MX4000 light curtain interface board, one MX4200 or MX4100 system | $1,295 |
Side guards and brackets
| Part | Description | List, CAD | |
|---|---|---|---|
| MXSSG-450-PLX | Swing away side guard, 450 mm curtains, polycarbonate panels | $3,275 | |
| MXSSG-600-PLX | Swing away side guard, 600 mm curtains, polycarbonate panels | $3,620 | |
| MXSSG-750-PLX | Swing away side guard, 750 mm curtains, polycarbonate panels | $3,965 | |
| MXSSG-900-PLX | Swing away side guard, 900 mm curtains, polycarbonate panels | $4,310 | |
| MXSSG-1050-PLX | Swing away side guard, 1050 mm curtains, polycarbonate panels | $4,660 | |
| MXSSG-1200-PLX | Swing away side guard, 1200 mm curtains, polycarbonate panels | $5,000 | |
| MXSSG-450-HB | Swing away side guard, 450 mm curtains, horizontal bars | $3,965 | |
| MXSSG-600-HB | Swing away side guard, 600 mm curtains, horizontal bars | $4,310 | |
| MXSSG-750-HB | Swing away side guard, 750 mm curtains, horizontal bars | $4,660 | |
| MXSSG-900-HB | Swing away side guard, 900 mm curtains, horizontal bars | $5,000 | |
| MXSSG-1050-HB | Swing away side guard, 1050 mm curtains, horizontal bars | $5,350 | |
| MXSSG-1200-HB | Swing away side guard, 1200 mm curtains, horizontal bars | $5,690 | |
| MXSSPB-STD | Straight side mounting brackets, one vertical curtain set | $2,930 | |
| MXSSPB-STD-L | Straight side mounting brackets, one vertical and one horizontal set | $3,620 |
Press brake interface kits
Kits for common hydraulic press brake controllers. Tell us the make and model and we will confirm the kit.
| Part | Description | List, CAD | |
|---|---|---|---|
| ISBM-RGEX | Press brake interface kit, NC-9 controller machines | $10,265 | |
| ISBM-RGLD | Press brake interface kit, RGEX Plus, RGGS and RGEX dual machines | $10,265 | |
| ISBM-RGPARTS | Extra parts kit for RG-25 and RG-35 machines | $1,035 | |
| ISBM-HFB | Press brake interface kit, HFB machines | $10,265 | |
| ISBM-HFE | Press brake interface kit, HFE machines | $10,265 | |
| ISBM-FBD-EX | Press brake interface kit, FBD-EX machines | $10,265 | |
| ISBM-FBD-NT | Press brake interface kit, FBD-NT machines | $10,265 | |
| ISBM-FBD-III | Press brake interface kit, FBD-III machines | $13,370 | |
| ISBM-FBD-F | Press brake interface kit, FBD-F machines | $13,370 |
List prices in Canadian dollars, before tax, confirmed on your quote.

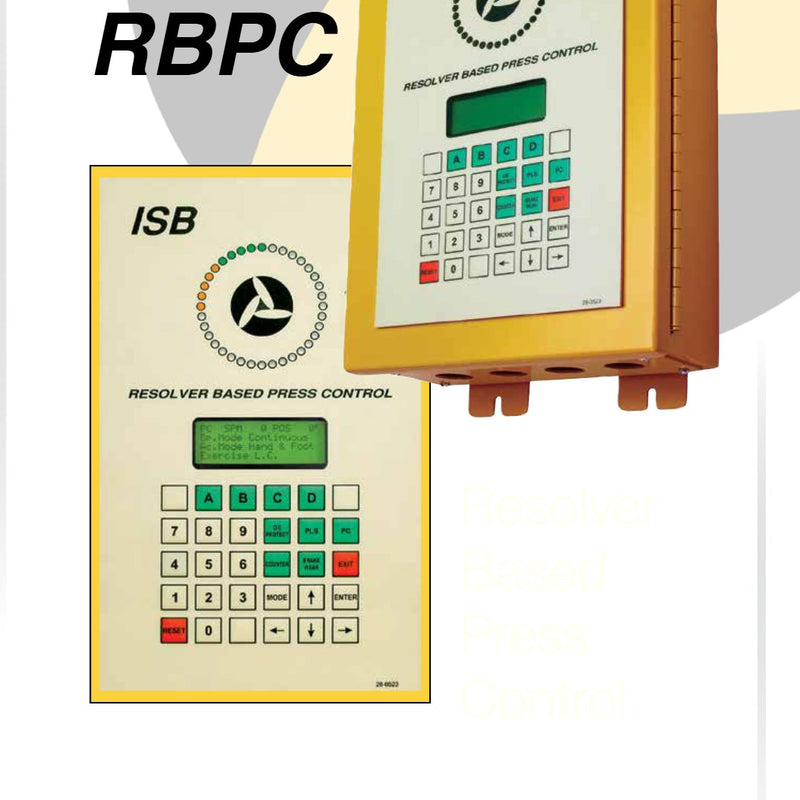

Mechanical power press controls

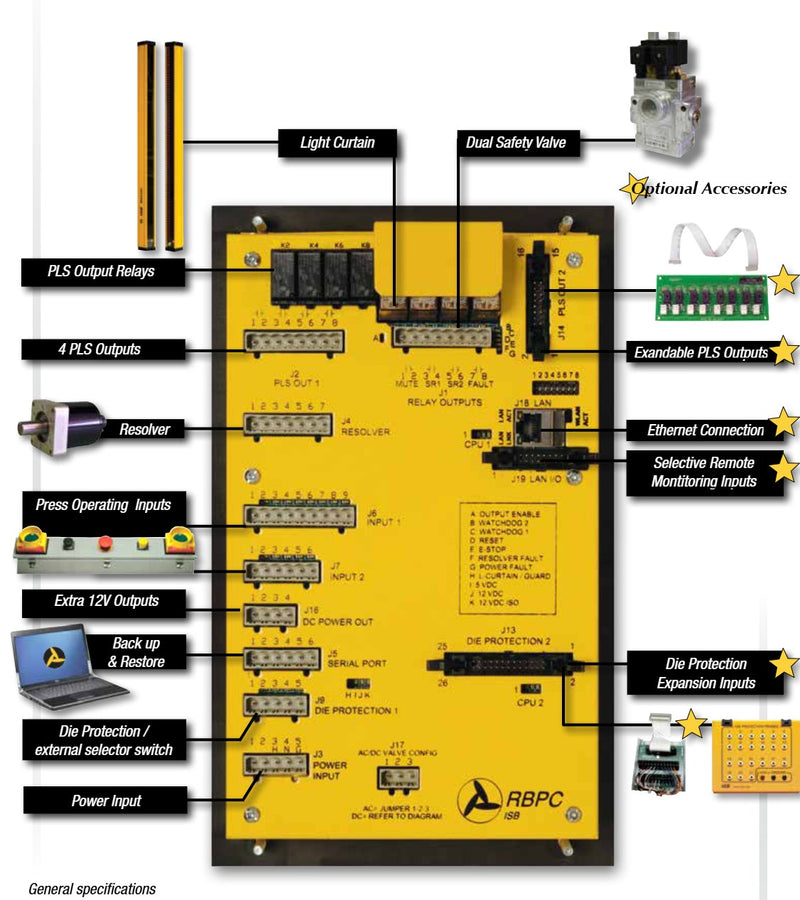

Resolver based press control for mechanical presses, with die protection and programmable limit switches built in.
| Product | Options |
|---|---|
| Resolver based press control | Standard enclosure, die protection expansion (21 more channels), programmable limit switch expansion (8 more channels, mechanical or solid state relays) |

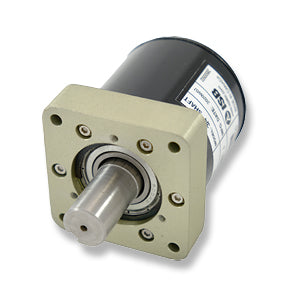

| Resolvers and mounting | 3/8 in and 3/4 in shafts, mounting brackets, spring loaded bases, cables 20 to 100 ft |
| Mechanical probes | End of stock sensor, buckle sensor, pilot actuator, complete probe assemblies |
| Pulse air control | Pulse air controller with proximity switch, 1/2 in and 3/4 in solenoid valves |
| Spares | Force guided safety relays, solid state and electromechanical relays, proximity switches, cam straps |
| Part | Description | List, CAD | |
|---|---|---|---|
| RBPC | Resolver based press control | $6,540 | |
| 01-0675-000 | Standard enclosure for RBPC | $1,120 | |
| RBPC-DIE-EXP | Die protection expansion, 21 channels, with terminal block and 24 V DC banana plug box | $2,330 | |
| RBPC-DIE-ERC | Die protection expansion, 21 channels, terminal block only | $1,465 | |
| RBPC-PLS-EXP | Programmable limit switch expansion, 8 channels | $1,810 | |
| 30-0018-020 | Resolver, 3/4 in shaft | $1,810 | |
| 30-0018-010 | Resolver, 3/8 in shaft | $1,770 | |
| 02-0399 | Resolver mounting bracket | $205 | |
| 56-0699 | Spring loaded base for resolver bracket | $500 | |
| 18-0223 | Proximity switch, PNP, 1 NO 1 NC | $275 | |
| 02-0202-011 | Proximity switch mounting bracket | $60 | |
| 56-0200 | Cam strap and lobe | $78 | |
| 55-0556-020 | Resolver cable, 20 ft | $405 | |
| 55-0556-030 | Resolver cable, 30 ft | $450 | |
| 55-0556-050 | Resolver cable, 50 ft | $490 | |
| 55-0556-100 | Resolver cable, 100 ft | $535 | |
| 18-2073-001 | Air pressure switch assembly | $655 | |
| 98-0110-219 | Quick exhaust valve, 3/8 in, for 2 1/2 in cylinders | $430 | |
| 98-0110-217 | Quick exhaust valve, 1/2 in, for 3 1/4 in cylinders | $510 | |
| 22-0227 | Spare force guided safety relay | $138 | |
| 22-0227-04 | Set of 4 force guided safety relays | $330 | |
| 22-0239 | Spare electromechanical relay, PLS | $69 | |
| 22-0242 | Spare solid state relay, DC output, PLS | $69 | |
| 22-0240 | Spare solid state relay, AC output, PLS | $69 | |
| 91-0101 | End of stock sensor | $285 | |
| 91-0102 | Buckle sensor | $330 | |
| 91-0103 | Complete probe assembly | $250 | |
| 91-0104 | Pilot actuator | $275 | |
| 56-0553 | Pulse air control with power harness and proximity switch | $1,770 | |
| 98-0100-161 | Solenoid valve, 1/2 in, no muffler | $475 | |
| 98-0100-162 | Solenoid valve, 3/4 in, no muffler | $675 |
List prices in Canadian dollars, before tax, confirmed on your quote.

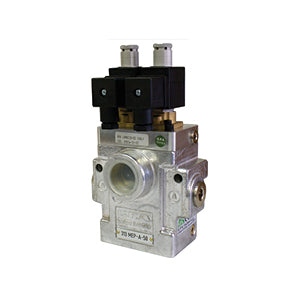

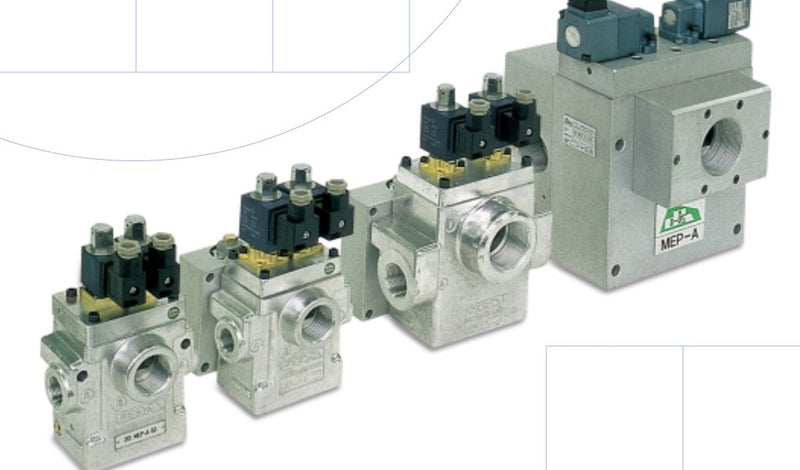

Press safety valves and pneumatics
Safety valves for clutch and brake air on mechanical presses, with pressure fault monitoring.
| Product | Sizes and options |
|---|---|
| Press safety valves | 1/2 in, 3/4 in and 1 in operating ports, 110 V AC or 24 V DC |
| Pressure fault monitor switches | Two per valve |
| Exhaust mufflers and solenoid kits | 1 in and 1.5 in mufflers, 24 V DC solenoid kits, valve wiring box |
| Quick exhaust valves | 3/8 in and 1/2 in, for 2 1/2 in and 3 1/4 in cylinders, plus air pressure switch assemblies |
| Part | Description | List, CAD | |
|---|---|---|---|
| 56-3010-110 | Press safety valve, 1/2 in, 110 V AC | $1,785 | |
| 56-3010-220 | Press safety valve, 3/4 in, 110 V AC | $2,285 | |
| 56-3010-330 | Press safety valve, 1 in, 110 V AC | $3,380 | |
| 56-3010-40 | Press safety valve, 1/2 in, 24 V DC | $1,785 | |
| 56-3010-50 | Press safety valve, 3/4 in, 24 V DC | $2,285 | |
| 56-3010-60 | Press safety valve, 1 in, 24 V DC | $3,380 | |
| 56-3015-001 | Pressure fault monitor switch, each, two per valve | $265 | |
| 56-3020-02 | Exhaust muffler, 1 in, for 1/2 and 3/4 in valves | $181 | |
| 56-3020-03 | Exhaust muffler, 1.5 in, for 1 in valves | $215 | |
| 56-3010-24-DC-1 | 24 V DC solenoid kit, 1/2 in valve, two per valve | $370 | |
| 56-3010-24-DC-2 | 24 V DC solenoid kit, 3/4 in valve, two per valve | $370 | |
| 56-3010-24-DC-3 | 24 V DC solenoid kit, 1 in valve, two per valve | $370 | |
| 90-2050-01 | Valve wiring box | $520 |
List prices in Canadian dollars, before tax, confirmed on your quote.
Operator controls

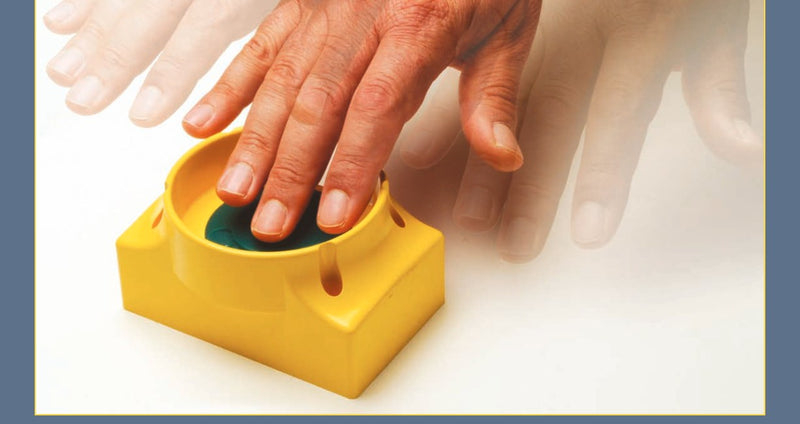

Softouch2 ergonomic palm buttons that need very little force, for two hand control stations.
- Palm buttonsOpen or closed ring guard, with or without a bell box.
- Two hand stationsPairs of buttons on a 30 in trough, with emergency stop, top stop and preset buttons available.
| Part | Description | List, CAD | |
|---|---|---|---|
| ST2-0001-00 | Softouch2 palm button, closed ring guard, with mounting hardware | $455 | |
| ST2-0001-90 | Softouch2 palm button, open ring guard, with mounting hardware | $455 | |
| ST2-1001-00 | Softouch2 palm button, closed ring guard, with bell box | $595 | |
| ST2-4000-00 | Two hand station, pair of buttons on a 4 x 4 x 30 in trough | $1,640 | |
| ST2-4100-00 | Two hand station with emergency stop | $1,830 | |
| ST2-4200-00 | Two hand station with emergency stop, top stop and preset buttons | $2,240 |
List prices in Canadian dollars, before tax, confirmed on your quote.

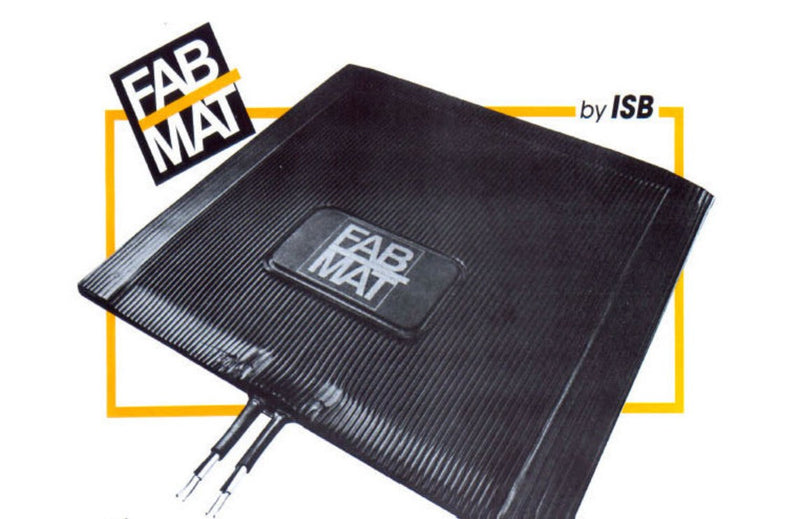

Safety mats
Fab-Mat pressure sensitive mats made to your width and length, for the area behind a press brake or around a cell.
- Made to orderAny width and length, with aluminum edge trim.
- ControllersMat controller and safety relay, or wired into the press brake guarding box.
| Part | Description | List, CAD | |
|---|---|---|---|
| FM2-CTR | Fab-Mat 2 controller | $1,545 | |

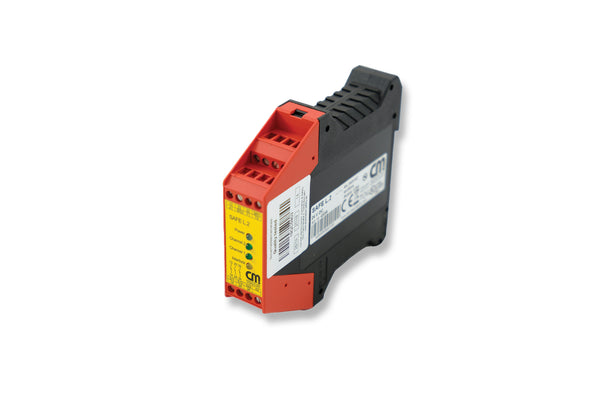

| 22-4000 | Safety relay for Fab-Mat, 115 V AC in, 24 V AC/DC out | $950 | |
| 34-0893-000 | Fab-Mat aluminum edge trim, 108 in length | $260 |
Mats are made to order by width and length. Send the dimensions for a price.
List prices in Canadian dollars, before tax, confirmed on your quote.

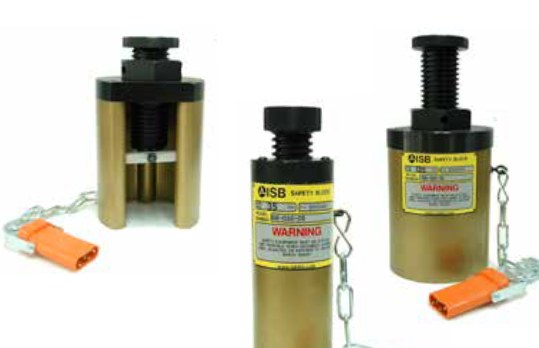

Adjustable die safety blocks
Blocks that hold the ram open while dies are changed or serviced, with electrical interlocks so the press cannot cycle while a block is out.
| Style | Open heights | Notes |
|---|---|---|
| Mini, 1.5 in round | 5, 7 and 10 in | With safety interlock |
| 3 in round | 9, 12, 16 and 20 in | With electrical interlocks, custom heights on request |
| 5.6 in horseshoe | 12, 22, 27 and 36 in | With electrical interlocks, custom heights on request |
| Block holders | For round, mini and horseshoe styles | Keeps the block stored at the press |
| Part | Description | List, CAD | |
|---|---|---|---|
| SB-015-05 | Mini adjustable safety block, 1.5 in round, 5 in open, 3 in closed, with interlock | $1,285 | |
| SB-015-07 | Mini adjustable safety block, 1.5 in round, 7 in open, 4 in closed, with interlock | $1,370 | |
| SB-015-10 | Mini adjustable safety block, 1.5 in round, 10 in open, 7 in closed, with interlock | $1,460 | |
| SB-035-09 | Adjustable safety block, 3 in round, 9 in open, 6 in closed, with interlocks | $1,890 | |
| SB-035-12 | Adjustable safety block, 3 in round, 12 in open, 9 in closed, with interlocks | $1,975 | |
| SB-033-16 | Adjustable safety block, 3 in round, 16 in open, 10 in closed, with interlocks | $2,060 | |
| SB-033-20 | Adjustable safety block, 3 in round, 20 in open, 14 in closed, with interlocks | $2,150 | |
| SB-125-12 | Horseshoe adjustable safety block, 5.6 in, 12 in open, 9 in closed, with interlocks | $2,320 | |
| SB-125-22 | Horseshoe adjustable safety block, 5.6 in, 22 in open, 13 in closed, with interlocks | $2,665 | |
| SB-125-27 | Horseshoe adjustable safety block, 5.6 in, 27 in open, 18 in closed, with interlocks | $2,840 | |
| SB-125-36 | Horseshoe adjustable safety block, 5.6 in, 36 in open, 21 in closed, with interlocks | $3,185 | |
| SB-HLR-01 | Die block holder, standard round | $430 | |
| SB-HLR-02 | Die block holder, horseshoe | $430 | |
| SB-HLR-03 | Die block holder, mini round | $335 |
List prices in Canadian dollars, before tax, confirmed on your quote.
Light curtain accessories
Everything needed to mount, wire and test a light curtain installation.
Cables and junction blocks
M12 connector cables from 1.5 to 15 m and four port junction blocks.
Mirrors and pedestals
Corner mirrors for 300 to 1500 mm curtains and 72 in floor pedestals with levelling screws.
Brackets and damping
Plastic and aluminum split collar brackets with vibration damping mounts.
Test rods and teach tools
Test rods for each resolution, teach-in tools and manual reset buttons.
Safety relays
DIN rail safety relays and expansion modules.
Power supplies
24 V DC DIN rail supplies, 1.75 A and 5 A, universal input.
| Part | Description | List, CAD | |
|---|---|---|---|
| 55-4010-05 | Emitter cable, M12 5 pin, 5 m | $105 | |
| 55-4010-10 | Emitter cable, M12 5 pin, 10 m | $178 | |
| 55-4010-15 | Emitter cable, M12 5 pin, 15 m | $260 | |
| 55-4011-03 | MX4100 detector cable, M12 8 pin, 3 m | $119 | |
| 55-4011-05 | MX4100 detector cable, M12 8 pin, 5 m | $190 | |
| 55-4011-10 | MX4100 detector cable, M12 8 pin, 10 m | $300 | |

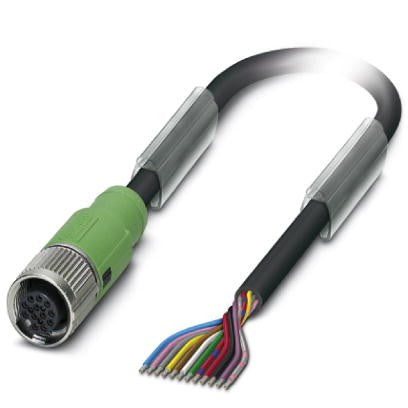

| 55-4012-03 | MX4200 detector cable, M12 12 pin, 3 m | $260 | |
| 55-4012-05 | MX4200 detector cable, M12 12 pin, 5 m | $320 | |
| 55-4012-10 | MX4200 detector cable, M12 12 pin, 10 m | $500 | |
| 55-4013-01 | Junction block cable, M12 5 pin male, 1.5 m | $64 | |
| 55-4013-03 | Junction block cable, M12 5 pin male, 3 m | $74 | |
| 55-4013-05 | Junction block cable, M12 5 pin male, 5 m | $95 | |
| 55-4013-10 | Junction block cable, M12 5 pin male, 10 m | $140 | |
| 55-4004-015 | Junction block to emitter cable, 1.5 m | $100 | |
| 55-4004-03 | Junction block to emitter cable, 3 m | $110 | |
| 55-4004-05 | Junction block to emitter cable, 5 m | $140 | |
| 55-4004-10 | Junction block to emitter cable, 10 m | $179 | |
| JB5 | Four port junction block with 1.5 m cable, MX4200 | $560 | |
| 56-5000 | Test rod, 14 mm | $34 | |
| 56-5001 | Test rod, 22 mm | $41 | |
| 56-5002 | Test rod, 30 mm | $52 | |
| 56-5003 | Test rod, 38 mm | $66 | |
| 02-4007-01 | Mounting bracket, split collar, plastic | $21 | |
| 02-4007-04 | Mounting brackets with damping mounts, set of 4, plastic | $112 | |
| 02-4008-01 | Mounting bracket, split collar, aluminum | $34 | |
| 02-4008-04 | Mounting brackets with damping mounts, set of 4, aluminum | $164 | |
| 02-4013-11 | Vibration damping mount | $21 | |
| MX4000-PB | Teach-in interface box with indicator push button, 1.5 m cable | $395 | |
| MX4100-PT | Teach-in tool with pass through connectors, MX4100 | $570 | |
| MX4200-PT | Teach-in tool with pass through connectors, MX4200 | $855 | |
| 22-4001 | Safety relay, SR-4001, 24 V DC, DIN rail | $550 | |
| 22-4002 | Safety relay expansion module, 4 NO 1 NC | $605 | |

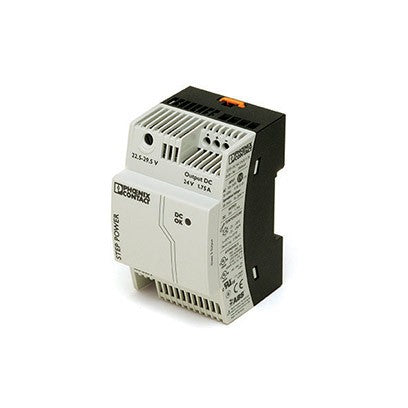

| 31-4001 | Power supply, 24 V DC, 1.75 A, DIN rail | $455 | |
| 31-4002 | Power supply, 24 V DC, 5 A, DIN rail | $1,120 | |
| MX4000-MRB-01 | Manual reset button, 1.5 m cable | $260 | |
| MX4000-MRB-03 | Manual reset button, 3 m cable | $275 | |
| MX4000-MRB-05 | Manual reset button, 5 m cable | $300 | |
| MX4000-MRB-10 | Manual reset button, 10 m cable | $330 | |
| ISBM-300 | Mirror assembly for 300 mm curtains | $775 | |
| ISBM-450 | Mirror assembly for 450 mm curtains | $820 | |
| ISBM-600 | Mirror assembly for 600 mm curtains | $860 | |
| ISBM-750 | Mirror assembly for 750 mm curtains | $905 | |
| ISBM-900 | Mirror assembly for 900 mm curtains | $950 | |
| ISBM-1050 | Mirror assembly for 1050 mm curtains | $990 | |
| ISBM-1200 | Mirror assembly for 1200 mm curtains | $1,045 | |
| ISBM-1350 | Mirror assembly for 1350 mm curtains | $1,095 | |
| ISBM-1500 | Mirror assembly for 1500 mm curtains | $1,145 | |
| M92-0003-004 | Pedestal set, floor mounted with levelling screws, 72 in, pair | $2,060 |
List prices in Canadian dollars, before tax, confirmed on your quote.
Tell us about the machine.
Send the make, model and what you need to guard. We will recommend the parts and send current pricing.
- Questions about an online ordersupport@prpreps.ca
- Sales and quotessales@prpreps.ca
- Phone+1 647 717 6264
