Shop / Vacuum pumps and systems / PRP-LR2-200-460
Specifications
| SKU | PRP-LR2-200-460 |
| Technology | Two-stage liquid ring vacuum pump |
| Motor | 15 hp |
| Flow | 200 cfm |
| Rating | Ultimate 33 mbar abs (25 torr) with 15 C seal water |
| Lubrication | Water sealed |
| Voltages | 460 V 3 ph, 575 V 3 ph |
| Price basis | CAD, before tax, FOB Mississauga. Freight, installation and start-up quoted to your site. |
200 acfm (340 m³/h), 15 hp, two stage, water sealed. Holds capacity better than single stage below 100 mbar.
- Ultimate pressure to 33 mbar abs (25 torr) with 15 °C seal water
- Better capacity at deep vacuum than a single-stage pump
- Uses for vacuum drying, distillation, degassing
Price in Canadian dollars, before tax, FOB Mississauga. Freight, rigging, piping, electrical connection and start-up are quoted to the site. Electrical approval for Canada (CSA, cUL or ESA field evaluation) is confirmed on the quote. Not sure of the size? Send your vessel volume, target pressure and cycle time and we will size the package.
PRP-LR2-200-460

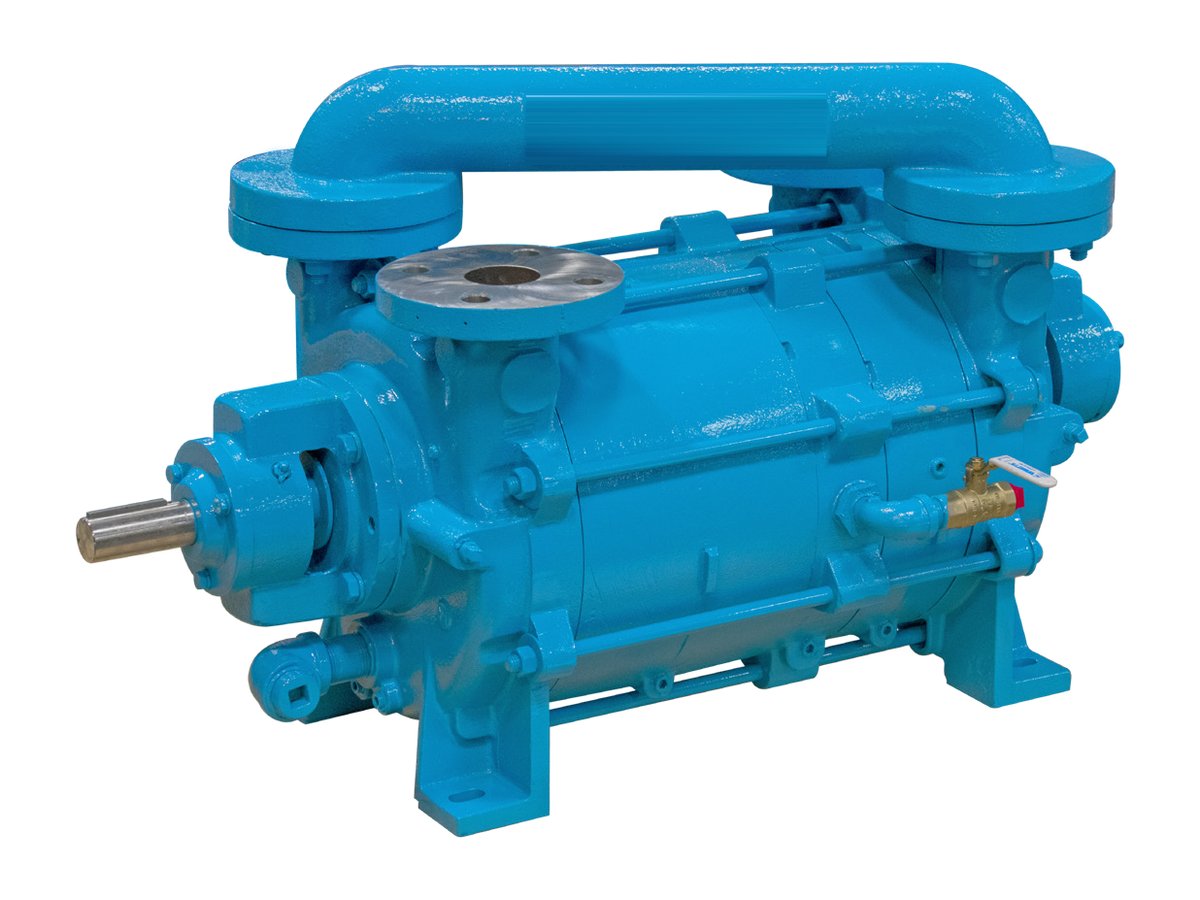

Two-stage liquid ring vacuum pump, 200 acfm, 15 hp (PRP-LR2-200)
$13,500.00 CAD, before tax
Get a formal quote for your purchasing team, or order on a purchase order with an approved company account.
Request a formal quote- Freight, rigging, electrical connection and start-up are quoted to your site. Installation through licensed service partners. Pickup in Ontario available.
- Company accounts get saved addresses, order history and payment terms on approval.
- Help with an order? support@prpreps.ca
- Not sure of the size? Use the vacuum selector or send us your duty and we will size it.
How we take the risk out of a project
A big purchase from a specialist supplier should feel safer than one from a catalogue, not riskier. This is how every equipment order is handled.
Size, voltage and site fit are checked by our engineering team on every equipment order. If something does not fit, we call you before anything ships.
Scope, who does what, schedule, start-up and the acceptance test are agreed in writing before you issue the purchase order. No surprises at commissioning.
Rigging, piping, electrical connection and start-up are done by licensed service partners in Ontario, with one point of contact: us.
For energy projects we can log power, pressure and flow before and after, so the savings are measured against your own baseline. How an audit works.
Every product carries the manufacturer's standard warranty, stated in writing with the order.
Orders over $10,000 are paid on invoice, never up front by card. Never send money to new banking details received by email. Payment safety.
