Shop / Machine safety / MX41-14-300
Specifications
| SKU | MX41-14-300 |
| Product type | Safety light curtain |
Emitter and detector pair, Type 4 to IEC 61496, for general machine guarding on presses, robot cells, CNC tables and machine openings. Choose the detection capability for what has to be protected (14 mm fingers, 22 to 38 mm hands, 82 mm body and access) and the protective field height that covers the opening. Protective field heights from 300 to 1800 mm in 150 mm steps. 14 mm resolution to 1200 mm.
- Made in Montreal, CSA approved
- M12 connectors, cables and brackets sold separately under accessories
- Needs a safety relay or wiring box, see press brake guarding and accessories
List price in Canadian dollars, before tax. Ships from Montreal, usually within two weeks. Not sure of the resolution, height or wiring box for your machine? Tell us the machine and the opening and we will put the right parts on one quote.
MX41-14-300

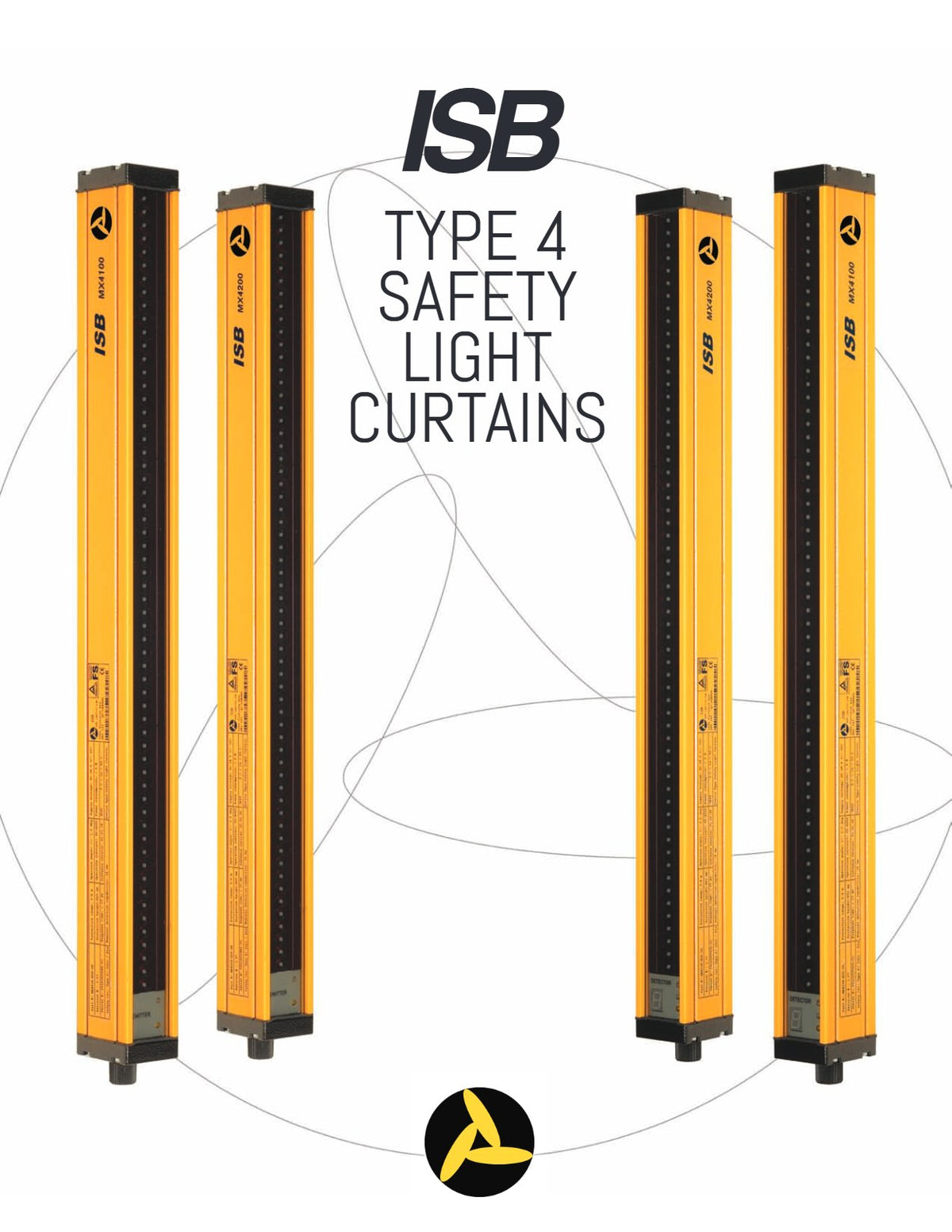

MX4100 Type 4 safety light curtain set
$2,765.00 CAD, before tax
Ask about volume pricing- Ships from Montreal, usually within two weeks. Freight is quoted after you order and added to your invoice.
- Company accounts get saved addresses, order history and payment terms on approval.
- Help with an order? support@prpreps.ca
- Not sure which parts go together? Tell us the machine and the opening and we will configure it, or call +1 647 717 6264.
Questions before you buy
What is included with a light curtain set?
One emitter and one detector column of the height and detection capability you pick. Cables, mounting brackets, mirrors and a safety relay or wiring box are separate items, listed on the machine safety page. If you are not sure what goes with your machine, send the make, model and the opening to guard and we will put the full set on one quote.
How long does delivery take?
Machine safety parts ship from Montreal, usually within two weeks of the order. Freight is quoted to your site.
How do I pick the detection capability?
14 mm detects a finger and can be mounted closest to the hazard. 20 to 30 mm detects a hand and suits most presses and press brakes. Coarser resolutions need more distance between the curtain and the hazard. Our light curtain article walks through the safety distance formula with a worked example.
Do I need a safety review before installing?
In Ontario, adding or changing a safeguarding device on a press can trigger a pre start health and safety review under Regulation 851. Plan for it before the parts arrive.
Can my company pay by purchase order?
Yes. Company accounts can pay by purchase order on approved terms. Orders over $10,000 are always paid on invoice.
Who do I contact about an order?
Email support@prpreps.ca with your order number. For quotes and technical questions email sales@prpreps.ca.
